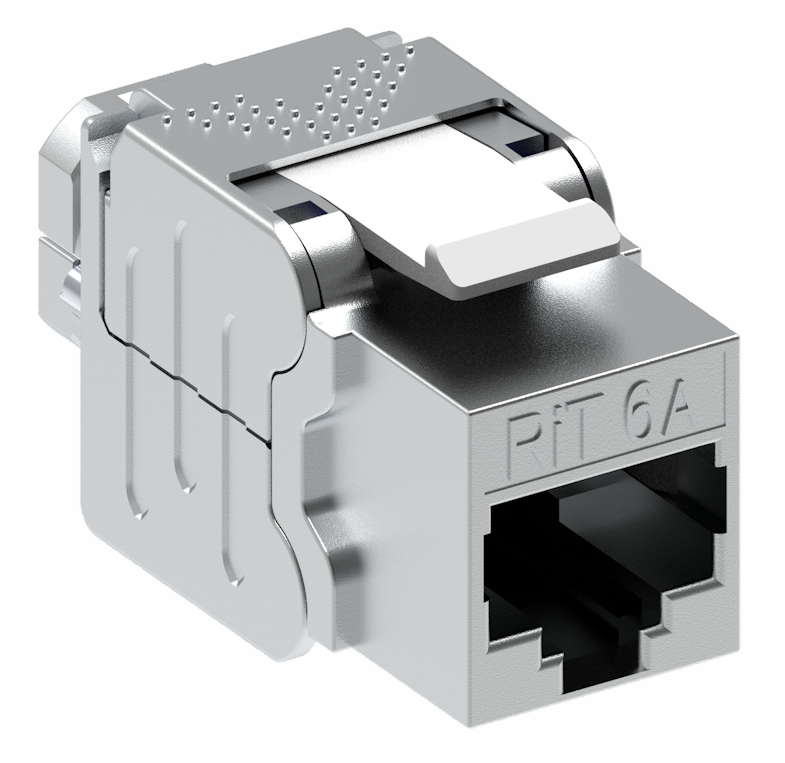

R3110682B - SMARTen (CAT6A)
Keystone HD STP Jack, C/H

Datasheet

Installation Instruction

• Slim design, supports 24 keystones in 1 row, 1U
• Tool-Less
• High performance, supports Category 6A performance specifications up to 500 MHz
• Conforms to Connecting Hardware requirements as per: ANSI/TIA/EIA-568.2-D, for Category 6A/CLASS EA, ISO/IEC 11801-1:2017 (Ed. 1.0)
• Supports solid or stranded 22-24 AWG wires
• Compatible with horizontal cables of up to 9.0 mm outer diameter
• Simple assembly and installation for reliable performance
• Compatible with a variety of international faceplates and patch panels IEC 60603- 7
• Designed to comply with IEC 60512-99-002 standard, for supporting POE PoE, PoE++ applications
  (IEEE 802.3bt , Type 4, 100W)
• EC verified
• UL listed


R3110672A - SMARTen UTP Keystone Jack, CH, Black

Datasheet

Installation Instruction

• Compact design
• High performance supports Category 6A performance specifications up to 500 MHz
• Confirms to Category 6A Connecting Hardware Requirements
• Simple labor-saving termination, tool free
• Support solid or stranded 23-26 AWG wires
• Protective strain relief caps
• Designed for high density applications
• Simple assembly and installation for reliable performance
• The jacks fit in standard openings as per IEC 60603-7
• Available in 8 colors
• EC Verified to ANSI/TIA-568.2-D Category 6A
• UL Listed
• UL

R2808110  - CLASSix (CAT6A) RJ-RJ Coupler Keystone Jack Type, STP

Datasheet

• Shielded Slim design
• Female to Female Keystone Coupler can be used to connect two Cat6A STP patch cords
• Designed for high density applications
• Compatible with RIT STP patch panels or wall plates (See Compatibility chart)
• Simple assembly and installation for reliable performance
• The Couplers will fit in a standard keystone openings as per IEC 60603-7
