COPPER FRAMES

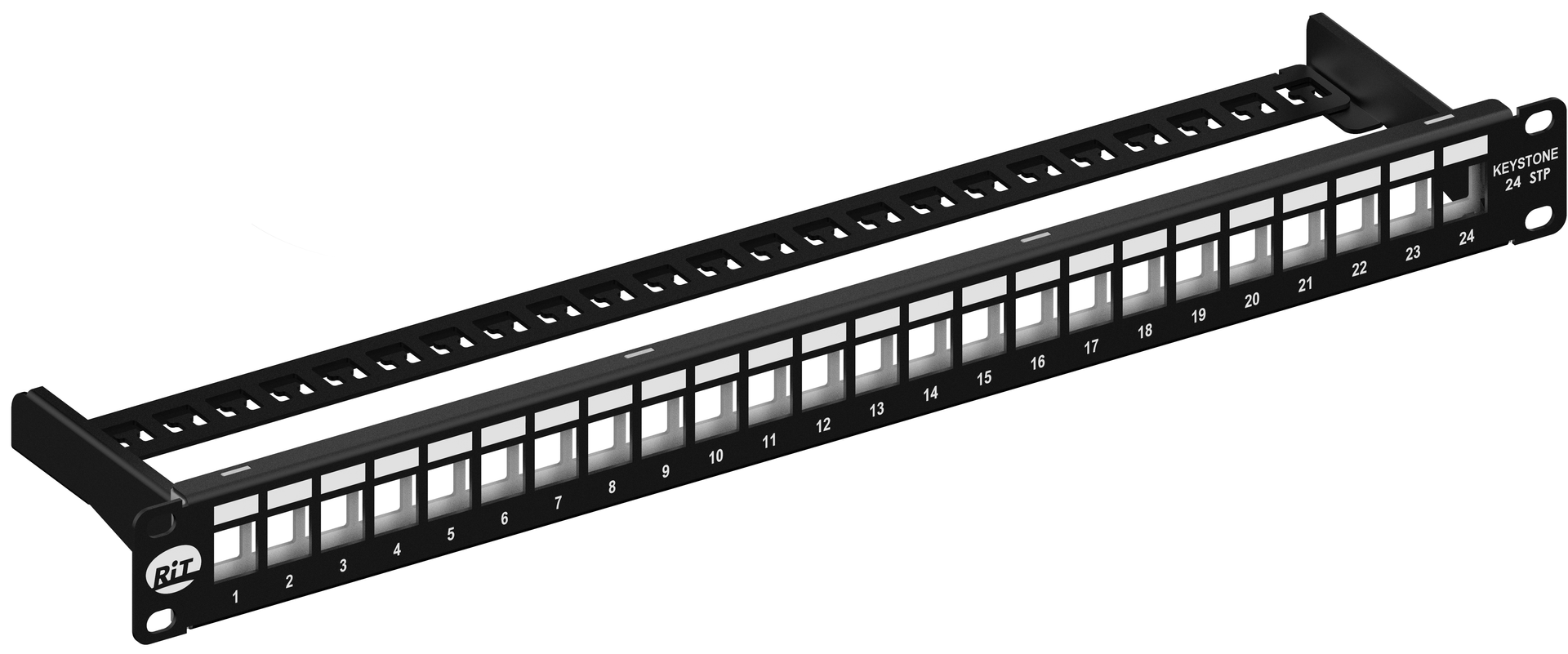

R3735081 - Keystone Copper Frame, UTP, 24

R3735082 - Keystone Copper Frame, STP, 24, IU

Modular design, models accommodate up to 24 UTP or STP keystone-type jacks in 1U
Simple assembly and installation, jacks are terminated separately and then mounted onto the panel
Models incorporating RiT SMARTen, CLASSix & Giga Jacks
Transparent labels holders
Different jacks may be mixed on the same panel
RoHS compliant: 2011/65/EU

R2801611 - Copper Frame, STP, HD, 48P, 1U

Modular design, models accommodate up to 48 UTP or STP RiT’s keystone-type jacks in only 1U
Simple assembly and installation, jacks are terminated separately and then mounted onto the panel
Including 18 AWG grounding wire
With rear cable management
Heavy duty cold rolled steel construction
Mounts in standard 19" Racks or Cabinets

R2801621 - Angled Copper Frame, UTP, 24P, 1U, Transparent Label Cover

R2801622 - Angled Copper Frame, UTP, 24P, 1U

R2801623 - Angled Copper Frame, STP, 24P, 1U, Transparent Label Cover

R2801624 - Angled Copper Frame, STP, 24P, 1U

R2801631 - Angled Copper Frame, HD, UTP, 48P, 1U

R2801632 - Angled Copper Frame, HD, STP, 48P, 1U

Modular design, models accommodate 24/48 UTP/STP RiT’s keystone-type Jacks in only 1U
Models incorporating RiT SMARTen, CLASSix & Giga Jacks
Different jacks may be mixed on the same panel
Panel & Support Bar with Fold support
Simple assembly and installation, Jacks are terminated separately and then mounted
onto the panel
Including 18/16 AWG grounding wire for STP Panel, 40/200cm length, Green/Yellow striped color
With rear cable management
Enhanced cable retention fixture
High durability and reliability
Heavy duty cold rolled steel construction
Liquid coating black color for both panel and support bar
Mounts in standard 19" Racks or Cabinets
Jacks are individually removable from panel ports
Back Interconnection (cabling side)
